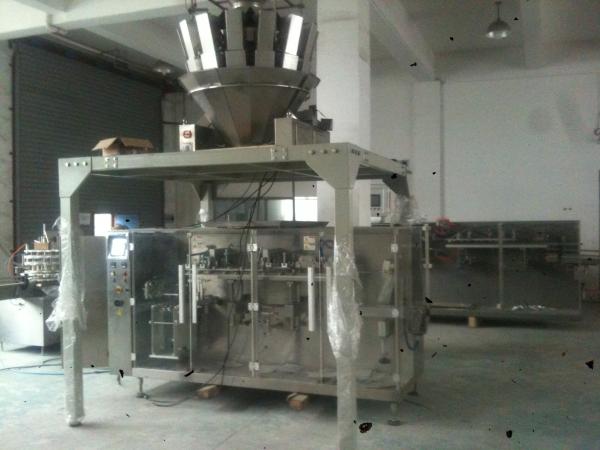

Fast Food Automatic Food Packing Machine 20-60 Bags/Min Speed SS304 Material

1. Application:

This machine is suitable for packing different food with various pre-made pouches,such as flat pouch, stand-up pouch, 3 sides sealing pouch etc. Applicable material: Solid: candy, peanuts, green bean, pistachio,crystal candy,brown sugar, cookies, cake, daily commodities, purred food, pet food etc. Granule: grain, refined monosodium, glutamate, capsule, seed, condiment, granulated sugar, chicken essence, melon seeds, nut; pesticide, fertilizer, feed, etc.

2. The main characteristics of equipment

1. Bag system:Baggiving ,filling and sealing is relatively independent of the system,The packaging can be adapted to different objects, package size and shape.
2. Product packaging system:Using heat sealing packaging materials (polyethylene, multilayer composite coating), the automatic bagging completed.measures such as packaging filling and sealing process fully automated production facilities.Use different forms of filling machine, and packaging different products.
3. Control System:PLC programmable computer controller inverter and so on, high integration, the ability to control and reliable operation.Touch screen technology enabled applications to operate machines more reliable and convenient.Photoelectric sensor, encoder, the switches are close to the import of advanced sensors.machinery and electronics integration has been a perfect performance.

3.Technical Parameter:

• Pouch Width 100mm-240mm
• Pouch Length 110mm-300mm
• Max Volume 600ml/pouch
• Speed 20~60pouch/min.
• Accuracy<±1.5%
• Electricity Consumption 5.0KW
• Air Consumption 0.6m³/min
• Weight 1000KG
• Size (L×W×H) 2250mm×985mm×1000mm

Shanghai XuanYi Packaging Technology co., LTD. Is a collection of r &d, design, manufacturing, technical services in one high-tech enterprises. Enterprises manufacturing automatic packing machine, bag packing machine can produce doypack bags, three or four sides sealing bag etc. ; It is widely used in food, chemical, pharmaceutical and other industries, which can realize the high precision packaging solid particles, liquid and powder materials. Company introduced European mechanical design technology, use of advanced production management system and mode of production, achieved from product design, material procurement, production to strictly control the equipment leave the factory. Key components of all equipment to choose international brand electrical products: schneider, mitsubishi, matsushita electric, etc. With high quality r&d team and abundant manufacturing experience, which is a good guarantee for customers to provide quality products and perfect service. Companies adhering to the "professional team achievement good products, good faith make good market" Create value for customers is our motivation, and help customers succeed is our mission! EM is willing to with your advance together, creates magnificently.
